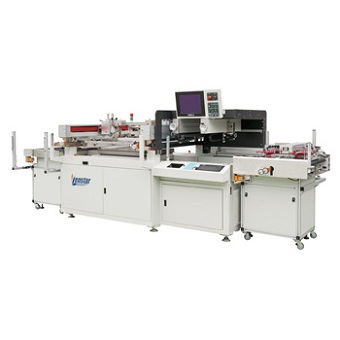

CCD Registering Screen Printer

Product Name : CCD Registering Screen Printer

Item No. : LEAFC-66E

Suitable for high precision screen printing production include hard printing material, such as LCD Cell Sealant, Touch panel, ITO, Diffusers for Back Light module, Light Guide Plate, EL panel, Embedded Resistor, etc.
Equip with CCD Registering device to correct inaccuracy of alignment when loading material to improve the precision.

Product Feature

The aligning accuracy within ±0.01mm, and with the sliding table, to improve excellent function and production yield rate.
The structure of machine is lighter and stronger, and provides top servo motor and drive motor, more stable, quiet, and fast.
The integrated table is made by aluminum, the flatness whin ±0.05mm, and the printing evenness is excellent.
Provide four post locking system on printing device, to ensure thickness of printing membrane accuracy.
The servo motor for peeling function and high precision digital constant pressure printing head, to showing constant pressure effect completely.
Operation by touch panel, easy to setting and operate, the memory of HMI save 100 units conditions of production, and provide other function, such as auto exanimate breakdown and display trouble shooting.
The auto loading/unloading device for ITO auto assembly to improveds capacity and yield rate.
The loading/unloading section to connect front/back process to deliver ITO glass through contactless power link for anti-dust production only.
Provide safety device, such as safety retum to origin, auto detect error system, safety optical grating, Emergency stop switch, alarm light, etc.
Optional accessory: antistatic bar, anti-dust cover for optical industry.
